Custom PVC Patches vs Rubber Silicone Patches: Waterproof, Softness & Cost Comparison

When it comes to durable, three-dimensional branding for apparel, bags, and outdoor gear, PVC patches and silicone patches are two of the most popular options. Both are waterproof, both can be fully customized, and both offer a modern, raised 3D look that traditional embroidered patches simply cannot match.

But beneath the surface, these two materials are fundamentally different. The choice between them affects your product's feel, durability, heat resistance, and cost.

Here is a direct comparison across three critical dimensions—waterproofing, softness, and cost—with hard data to help you decide which patch fits your needs.

What Are PVC and Silicone Patches?

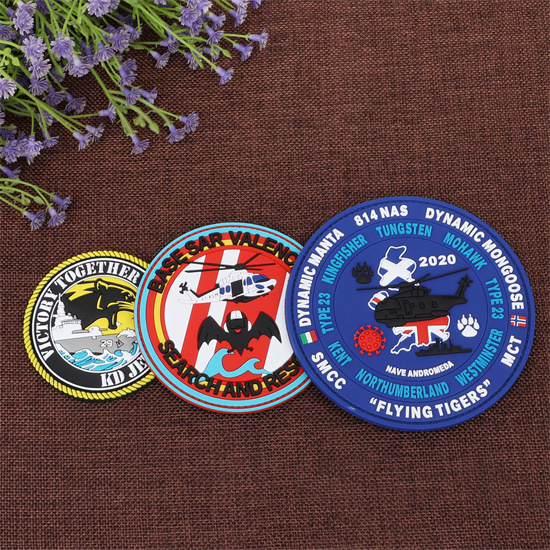

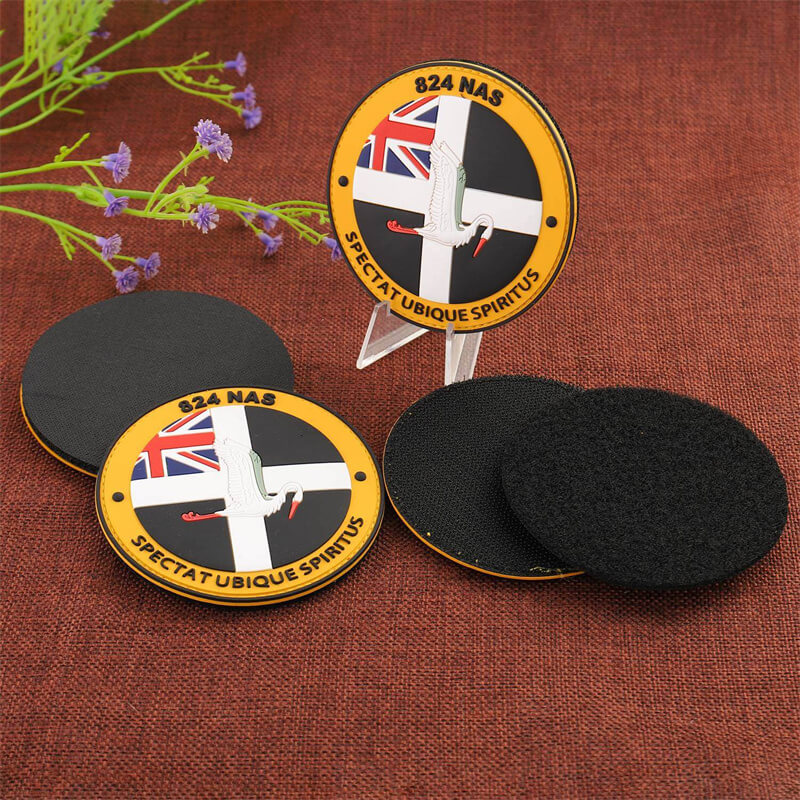

PVC Patches are made from polyvinyl chloride, a synthetic plastic polymer. When plasticizers are added, PVC becomes flexible and rubbery—but it remains a plastic at its core. PVC has a hardness of 60-80 Shore A and a density of 1.2-1.4 g/cm³. It can stretch 50-80% before breaking. Its working temperature range is -20°C to 50°C.

Silicone Patches are made from silicone rubber, a thermosetting elastomer. Unlike PVC, silicone is not a plastic—it is a rubber. It contains no plasticizers, no phthalates, and no harmful chemicals. Silicone has a hardness of 30-40 Shore A and a density of 1.1-1.2 g/cm³. It can stretch 200-300% without losing shape. Its working temperature range is -40°C to 250°C.

The difference matters: PVC is plastic that has been softened. Silicone is rubber that is naturally soft.

AQ PINS & GIFTS Note: We manufacture both PVC and silicone patches in-house. Our production team has worked with both materials for over 15 years, so we understand exactly which one works best for each application. We also offer embroidery patches — so you can choose from all three options with one supplier. No need to source from multiple factories.

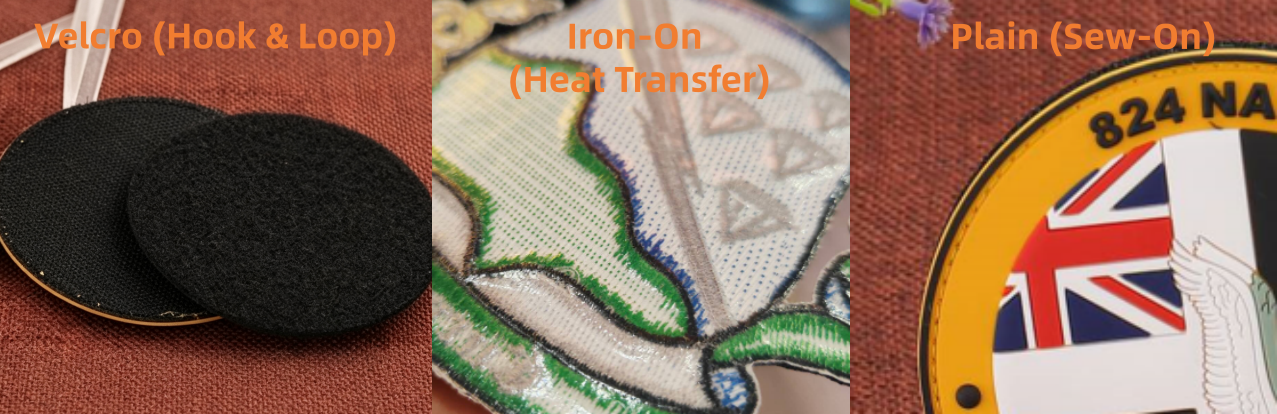

Attachment Options: Velcro, Iron-On, Sew-On

Both PVC and silicone patches can be attached in three main ways. The right choice depends on your fabric type, durability needs, and application method.

Velcro (Hook & Loop):
The patch has a hook backing that sticks to a loop base sewn onto the garment. This allows easy removal and reattachment. Ideal for uniforms, tactical gear, and items that need frequent washing or swapping.

Iron-On : A heat-activated adhesive is pre-applied to the back of the patch. It is bonded to the fabric using a heat press or household iron. Works for both PVC and silicone patches—simply apply heat to the back of the patch, not the front.

Plain (Sew-On):
The patch has no adhesive backing. It is stitched directly onto the fabric. This is the most secure and durable attachment method. Works for both PVC and silicone, and is ideal for heavy-duty applications like bags, workwear, and outdoor gear.

Side-by-Side Material Comparison

Here is a direct material-by-material comparison:

Can Both Handle Water and Heat?

Both PVC and silicone patches are 100% waterproof. Neither material absorbs water, and neither will swell, degrade, or lose adhesion when wet. For outdoor use, rain, sweat, and moisture are not concerns for either option.

The real difference is heat resistance.

PVC patches soften and deform at just 45-50°C (113-122°F) . This means they are not recommended for iron-on applications where high heat is involved. Standard heat press machines operate at 140-165°C —well above PVC's melting point. At these temperatures, PVC will bubble, warp, and suffer permanent damage. PVC patches must be sewn on or attached with Velcro.

Silicone patches withstand temperatures up to 200-250°C (392-482°F) . They are ideal for iron-on applications where the patch is bonded directly onto fabric using heat and pressure. Standard heat transfer requires 150-180°C , which is well within silicone's safe range. This is why sportswear and outdoor brands almost always choose silicone when heat transfer is required.

Key Takeaway: Both are waterproof. If you need iron-on application that will withstand repeated washing and high temperatures, silicone is the better choice.

Which One Feels Better?

Silicone is the clear winner in softness and comfort.

Silicone patches have a hardness of 30-40 Shore A , significantly softer than PVC's 60-80 Shore A. This means silicone feels noticeably softer and more comfortable against the skin. Silicone can stretch 200-300% without losing shape, compared to PVC's 50-80% stretch limit. It bends and recovers easily, making it ideal for garments worn close to the body.

PVC patches are harder and more rigid. While they have some flexibility, they do not recover as well from stretching and can become brittle over time, especially in cold conditions.

The material difference: PVC requires plasticizers to achieve its flexibility. Over time, these plasticizers can leach out, causing the material to harden and become brittle. Silicone does not require plasticizers—it stays soft and flexible for the life of the product.

User Experience:

How Do They Compare on Price?

PVC is the more affordable option. PVC patches are generally cheaper to produce due to lower raw material costs and simpler manufacturing processes. PVC molds are also less expensive to make, using aluminum molds that are cost-effective and quick to produce.

Typical pricing (100 pieces):

• PVC patch: $0.50–$1.00 per piece

• Silicone patch: $1.00–$2.00 per piece

Typical mold fees (one-time):

• PVC mold: $100–$200

• Silicone mold: $150–$300

Silicone costs more for three reasons:

1. Raw material: Silicone rubber is significantly more expensive than PVC resin

2. Mold quality: Silicone requires high-quality copper molds (more costly to produce) to achieve the fine detail and smooth surface finish

3. Environmental compliance: Silicone has stricter regulatory requirements, adding to production costs

Decision Guide:

PVC or Silicone: Which One Is Right for You?

Choose PVC if:

1.You need a cost-effective patch for rugged outdoor or industrial applications

2.You do NOT need iron-on attachment (sew-on or Velcro only)

3.Comfort against skin is not a primary concern

4.You are producing large quantities where cost matters most

5.Your working temperature stays within -20°C to 50°C

Choose Silicone if:

1.You need iron-on application

2.Comfort and softness against skin are important

3.Your products are children's clothing, sportswear, or fashion accessories

4.Environmental friendliness and safety are priorities

5.The product will be exposed to extreme temperatures (-40°C to 200°C)

6.You have a higher budget for superior material performance

Not sure which one is right for your project? Send us your artwork and we will review it for free. We will recommend the best material based on your product type, usage environment, and budget — no guesswork. Just a clear recommendation from people who work with these materials every day.

Where Are They Used?

PVC Patches Are Best For:

1.Tactical vests and military gear (sew-on)

2.Work uniforms and industrial safety wear (Velcro)

3.Backpacks and luggage (sew-on)

4.Promotional giveaways and cost-sensitive projects

Silicone Patches Are Best For:

1.Sportswear and activewear (iron-on)

2.Children's clothing and baby products (soft, safe, phthalate-free)

3.Outdoor gear exposed to extreme weather

4.Fashion accessories and designer labels (premium feel)

5.Fire-resistant workwear (silicone is naturally flame-retardant)

Frequently Asked Questions

Q1: Can PVC patches be ironed on?

A: Yes, PVC patches can be ironed on using a standard heat press or household iron. The adhesive on the back melts at 140-165°C and bonds to the fabric. Silicone patches are also suitable for iron-on applications and tend to hold up better over time with repeated washing.

Q2: Which patch is more durable?

A: Both are durable, but for different reasons. PVC is harder (60-80 Shore A) and more abrasion-resistant. Silicone is more flexible, can stretch 200-300% without breaking, and performs better in extreme temperatures (-40°C to 200°C).

Q3: Which patch feels better against the skin?

A: Silicone is significantly softer (30-40 Shore A vs PVC's 60-80 Shore A) and more comfortable against the skin. PVC has a harder, glossier feel that may irritate sensitive skin.

Why Choose AQ PINS & GIFTS for Custom Patches?

With over 15 years of experience, AQ PINS & GIFTS has been producing custom patches for clients worldwide since 2009. We are a BSCI-certified factory and an authorized vendor for Disney, Marvel, UEFA, and other global brands. Our vertically integrated facility handles everything from mold-making to production, ensuring consistent quality across PVC, silicone, and embroidery patches.

Key Advantages:

1. Both PVC and silicone patch manufacturing in-house

2. Velcro, iron-on, and sew-on backing options

3. Full-color, 3D custom designs

4. Low MOQ — 100 pieces available

5. BSCI certified and Disney-approved factory

Not Sure Which Material Fits Your Project?

Choosing between PVC and silicone doesn't have to be complicated. We work with both materials every day and know exactly which one fits each application.

Send us your artwork and we will recommend the right material based on your product type, usage environment, and budget. We will respond within 24 hours with a quote and material recommendation.
